Artikelnr:919750
Eenheid:

  Vergelijk




Dit product is compatibel met Axxon Next driverpack versie 3.69.3454 of hoger



Raadpleeg voor alle details de Datasheet onder Documenten/Folders in de Download-tab.

Algemene eigenschappen:

  • External power
    • Screw terminal
    • 12 - 24V DC
  • Housing:
    • Plastic housing for top hat rail installation
    • 106.8x87.8x62.6 (lxwxh)
  • Enclosure rating:
    • IP20
  • Weight:
    • approx. 250 g
  • Storage temperature:
    • -25°C - 70°C
  • Operating temperature:
    • 0°C - 60°C
  • Permissible relative humidity:
    • 5..95% RH (non-condensing)
  • MTBF:
    • 357,539 h @25°C per MIL-HDBK-217
  • Scope of delivery:
    • 1 x Web-IO 4.0 Digital, 12xInput, 12xOutput
    • 1 x Quick Guide
    • Power supply and other accessories can be ordered separately

Input/Output:

  • 12 switching inputs:
    • Digital 24V inputs
    • 32-bit pulse counter
  • 12 switching outputs:
    • Digital 24V outputs
           (12V, 48V, 110V, 230V via coupling relays)
    • Drive up to 500 mA
    • Short-circuit-protected

Connectiviteit:

  • Intuitive Web interface for simpler operation
    • Select between German or English
    • Switching the outputs directly from the Web interface
    • Adaptation for smartphone
    • HTTP and HTTPS
  • Current Industry 4.0 protocols:
    • REST and MQTT support
    • AMQP on request
  • Box-to-Box
    • Pass switching signals over the network 1:1
  • Alarm and reporting functions:
    • Email for alarm sending or as status report
    • SNMP polling / alarm traps
    • Switching your outputs in alarm situations
    • Switching the outputs on another Web-IO
    • HTTP requests for controlling third-party devices
    • Up to 12 actions can be configured
  • Dynamic integration into other Web sites:
    • Direct access to current measurement values via HTTP requests. AJAX and JavaScript
  • Additional software interfaces for incorporating into your systems/databases:
    • OPC
    • Modbus TCP
    • Syslog
    • TCP and UDP sockets, client and server
    • FTP (data logging)
  • Internal clock
    • Time synchronization via time server calibration
    • Battery-backed device clock
  • Possible applications:
    • Remote monitoring and fault messaging
    • Cross-location switching
    • House and building automation
    • Process monitoring and visualization
    • Light, gate and cabinet control
    • Machine Data Collection (MDC)
    • More uses can be found here.



image/jpeg
167 KB
versie
update
type
grootte

Afbeelding

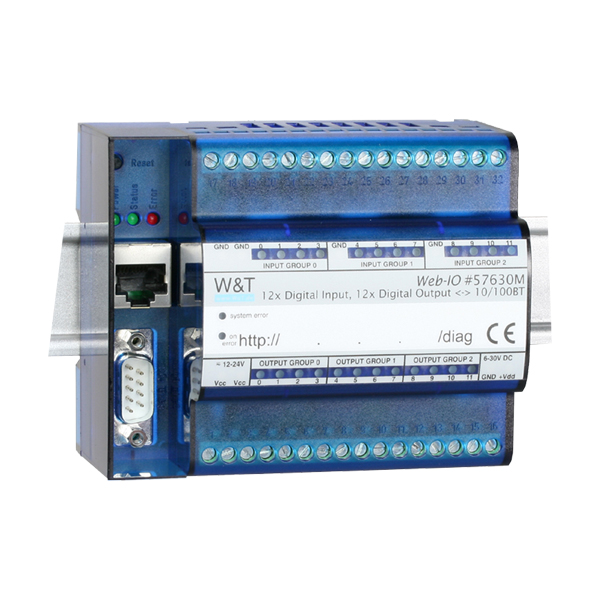

Product afbeelding (600 x 600 pixels)
