Algemene Eigenschappen:

• External power
  • Screw terminal
  • 12 - 24V DC

• Housing:
  • Plastic housing for top hat rail installation
  • 106.8x87.8x62.6 (lxwxh)
• Enclosure rating:
  • IP20
• Weight:
  • approx. 250 g
• Storage temperature:
  • -25°C - 70°C
• Operating temperature:
  • 0°C - 60°C
• Permissible relative humidity:
  • 5..95% RH (non-condensing)
• Scope of delivery:

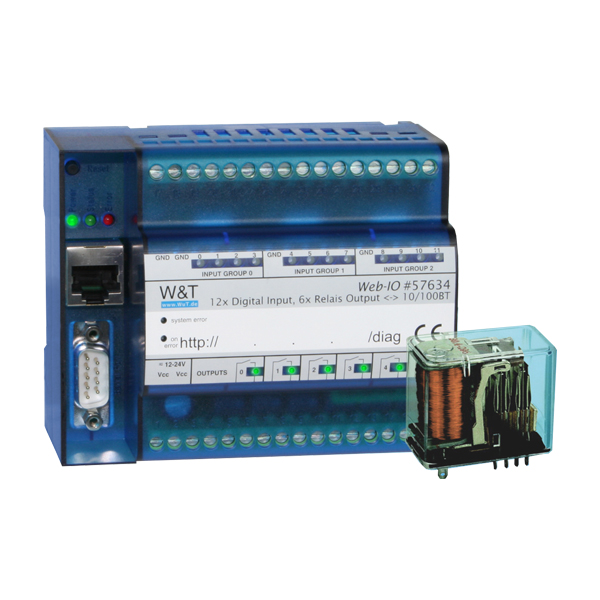

  • 1 x Web-IO 4.0 Digital, 12xIn, 6xRelay Out
  • 1 x Quick Guide
  • Power supply and other accessories can be ordered separately

Input/Output:

• 12 switching inputs:
  • Digital 24V inputs
  • 32-bit pulse counter
• 6 potential-free contacts
  • Switching voltage 12V, 24V, up to max. 48V
         (110V, 230V via coupling relays)
  • Switching current max. 5A

Connectiviteit:

• Intuitive Web interface for simpler operation
  • Select between German or English
  • Switching the outputs directly from the Web interface
  • Adaptation for smartphone
  • HTTP and HTTPS
• Current Industry 4.0 protocols:
  • REST and MQTT support
  • AMQP on request
• Box-to-Box
  • Pass switching signals over the network 1:1
• Alarm and reporting functions:
  • Email for alarm sending or as status report
  • SNMP polling / alarm traps
  • Switching your outputs in alarm situations
  • Switching the outputs on another Web-IO
  • HTTP requests for controlling third-party devices
  • Up to 12 actions can be configured
• Dynamic integration into other Web sites:
  • Direct access to current measurement values via HTTP requests. AJAX and JavaScript
• Additional software interfaces for incorporating into your systems/databases:
  • OPC
  • Modbus TCP
  • Syslog
  • TCP and UDP sockets, client and server
  • FTP (data logging)
• Internal clock
  • Time synchronization via time server calibration
  • Battery-backed device clock
• Possible applications:
  • Remote monitoring and fault messaging
  • Cross-location switching
  • House and building automation
  • Process monitoring and visualization
  • Light, gate and cabinet control
  • Machine Data Collection (MDC)
  • More uses can be found here.
