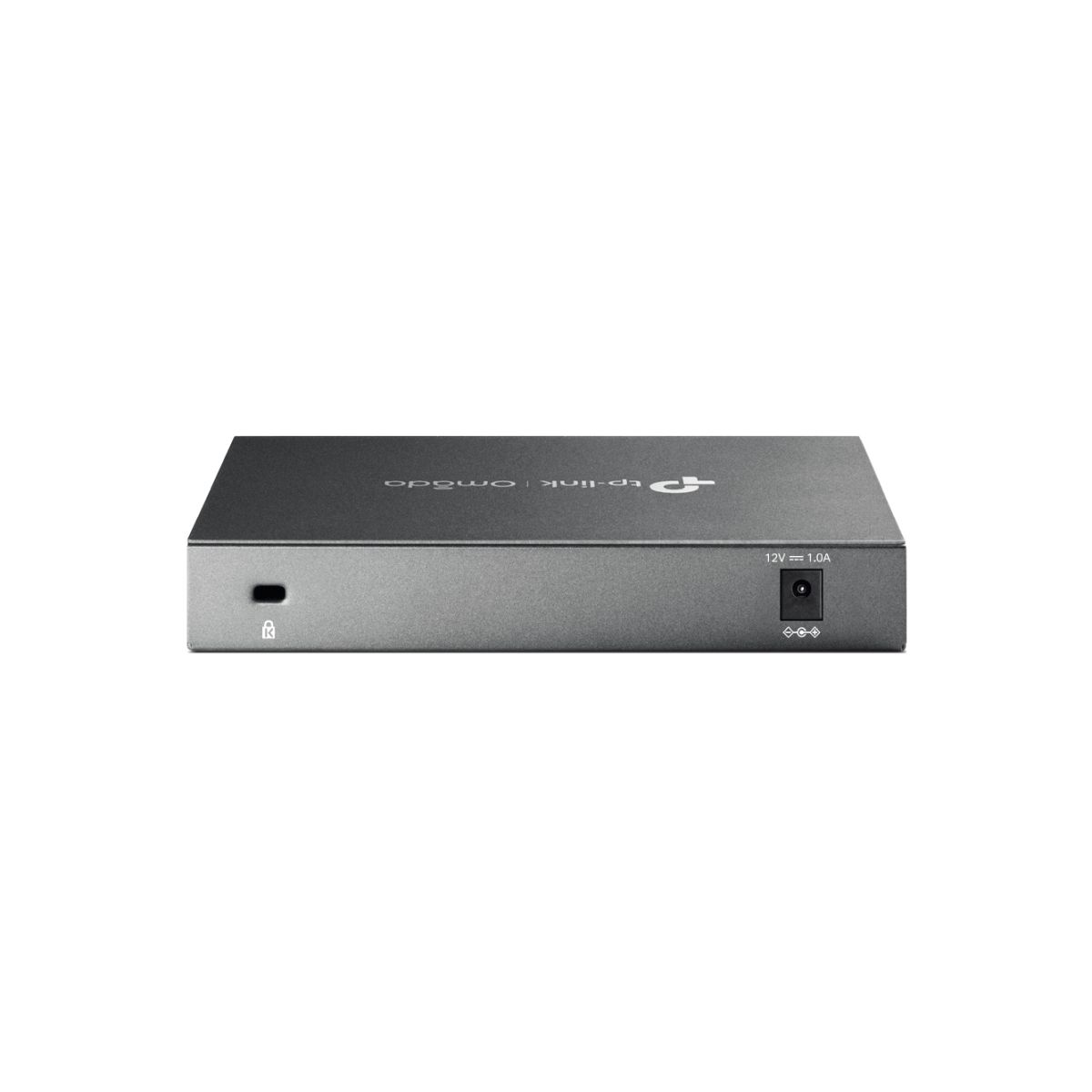

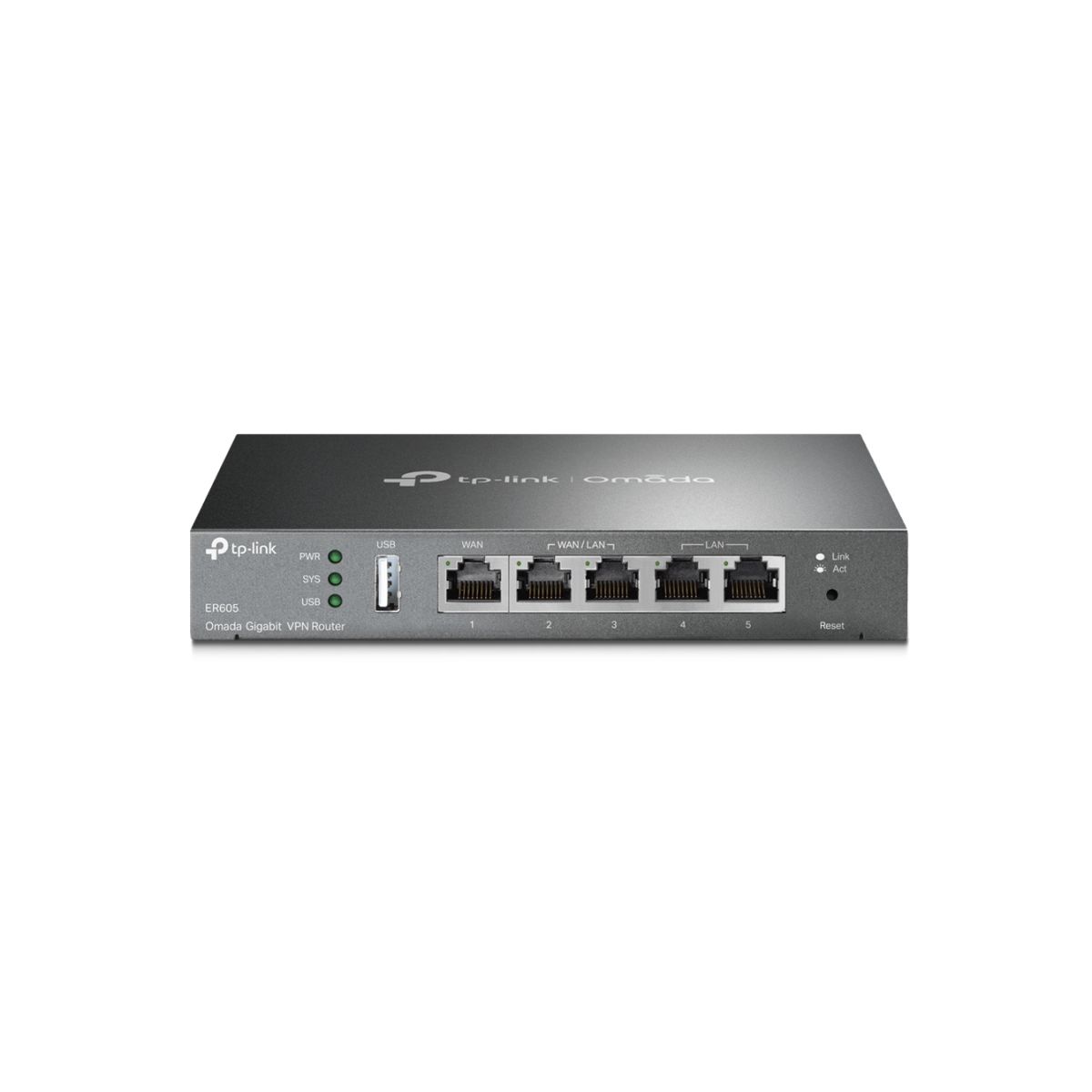

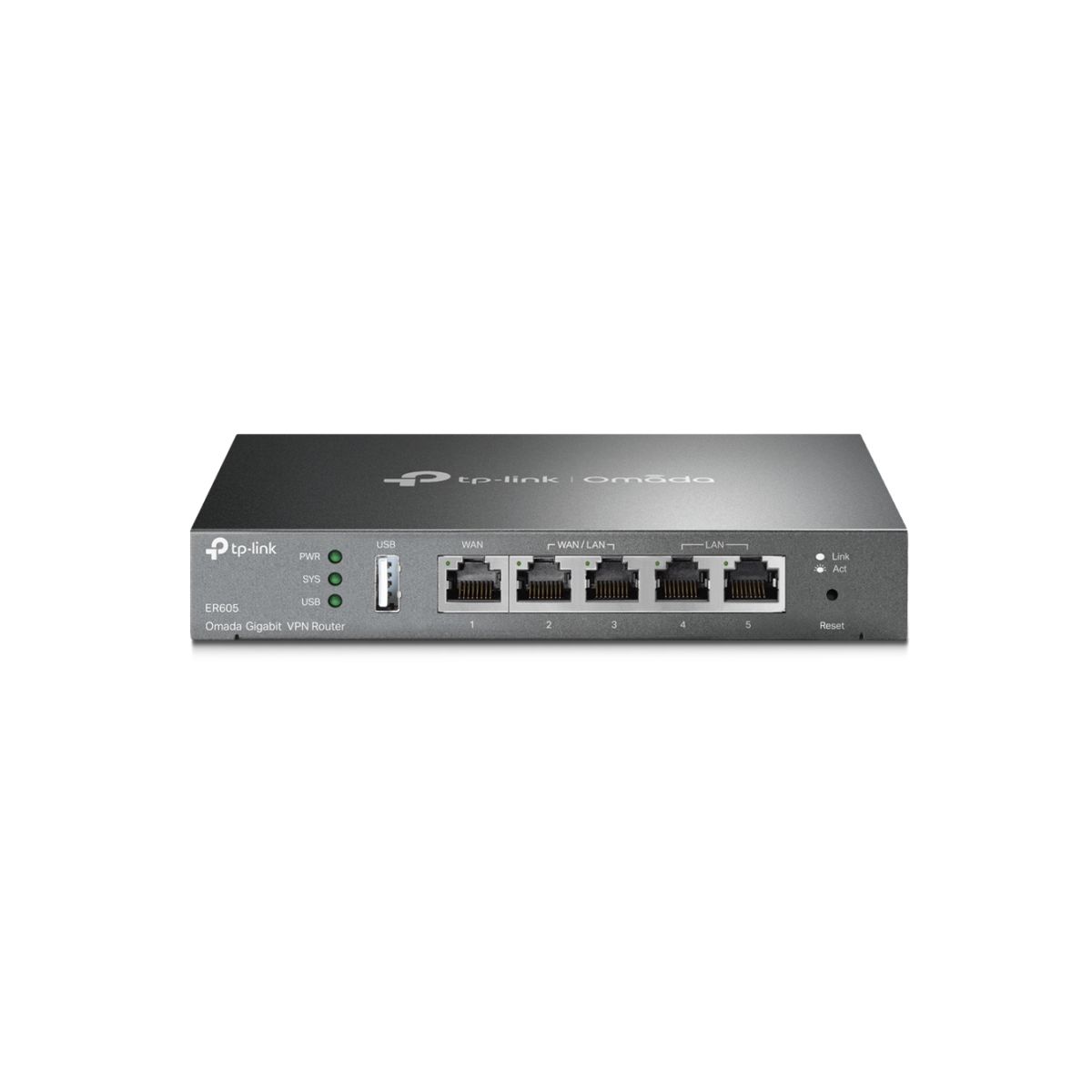

De TP-Link Omada ER605 is een krachtige Gigabit VPN Router die deel uitmaakt van het Omada Cloud platform. Het apparaat biedt centraal beheer via Omada Controller en ondersteunt meerdere VPN-protocollen voor veilige verbindingen. Dankzij de flexibele WAN-poorten en uitgebreide beveiligingsopties levert de ER605 betrouwbare prestaties voor professionele netwerken.

Raadpleeg voor alle details de Datasheet onder Documenten/Folders in de Download-tab.

Beveiliging	Access Control	Source/Destination IP Based Access Control
	Filtering	WEB Group Filtering URL Filtering Web Security
	ARP inspectie	Sending GARP Packets ARP Scanning IP-MAC Binding
	Aanvalsbescherming	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Hardware	Standaarden en protocollen	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN SNMP
	Interfaces	1 × Gigabit WAN port 2 × Gigabit LAN/WAN ports 2 × Gigabit LAN ports 1 × USB 2.0 (LTE dongle support)
	Netwerkmedia	10BASE-T: Cat3, 4, 5 UTP (max. 100 m) 100BASE-TX: Cat5, 5e UTP (max. 100 m) 1000BASE-T: Cat5e, 6 UTP (max. 100 m)
	Ventilator aantal	Fanless
	Knop	Reset
	Voeding	External 12V/1A DC adapter
	PoE budget	-
	Geheugen	128 MB NAND Flash, 256 MB DDR
	LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
	Afmetingen (B × D × H)	158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in)
	Bescherming	4 kV surge protection
	Behuizing	Staal
	Montage	Desktop / Wall-mount
	Max. verbruik	7.94 W
Prestaties	DPI throughput	TCP: 905 Mbps, UDP: 788 Mbps
	WireGuard VPN throughput	123.4 Mbps
	Sessions	150.000 concurrent, 2.600 new/sec
	NAT throughput	Static IP: 945 Mbps up, 939 Mbps down DHCP: 945 Mbps up, 945 Mbps down PPPoE: 940 Mbps up, 939 Mbps down L2TP: 816/836 Mbps PPTP: 813/851 Mbps
	VPN throughput	IPSec AES256: ±260 Mbps OpenVPN: 21.7 Mbps L2TP: 641 Mbps (unencrypted) / 77 Mbps (encrypted) PPTP: 760 Mbps (unencrypted) / 76 Mbps (encrypted)
	Packet forwarding	66 bytes: 1.388.815 pps 1.518 bytes: 81.067 pps
Basisfuncties	WAN verbindingstype	Static, Dynamic IP, PPPoE, PPTP, L2TP
	MAC clone	Modify WAN/LAN MAC Address
	DHCP	DHCP Server DHCPv6 PD Server (standalone) Address reservation Options customization Multi-IP interfaces Multi-Net DHCP
	IPv6	Static IP, SLAAC, DHCPv6, PPPoE, 6to4 Tunnel, PassThrough
	VLAN	802.1Q VLAN
	IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced functies	Routing	Static, Policy, RIP, OSPF
	Bandbreedte controle	IP-based
	Load balancing	Intelligent LB, App optimized routing, Link backup, Online detection
	NAT	One-to-One NAT Multi-Net NAT Port forwarding DMZ ALG (FTP, H.323, SIP, IPSec, PPTP) UPnP
	Session limit	IP-based session limit
VPN	SD-WAN	Ja (controller mode)
	IPSec VPN	20 tunnels, LAN-to-LAN & Client-to-LAN, AES/DES/3DES, SHA1/2, IKEv1/v2, NAT-T, DPD, PFS
	PPTP VPN	16 tunnels, server & client, MPPE encryptie
	L2TP VPN	16 tunnels, server & client, L2TP over IPSec
	OpenVPN	16 tunnels, server & client, certificaat+account, full mode
	WireGuard VPN	20 tunnels
Authenticatie	Web Authentication	No authentication Password Hotspot (Local, Voucher, SMS, Radius) External Radius/Portal LDAP
Beheer	Omada App	Ja (vereist Omada Controller)
	Centralized management	Omada Cloud, Hardware (OC200/OC300), Software Controller
	Cloud access	Ja (met controller)
	Zero-Touch provisioning	Ja (met Cloud Controller)
	Management features	Automatic device discovery Network monitoring Event warnings Unified configuration Reboot schedule Captive portal config Web GUI / CLI (standalone) SNMP v1/v2c/v3 Syslog
Overige	Certificatie	CE, FCC, RoHS

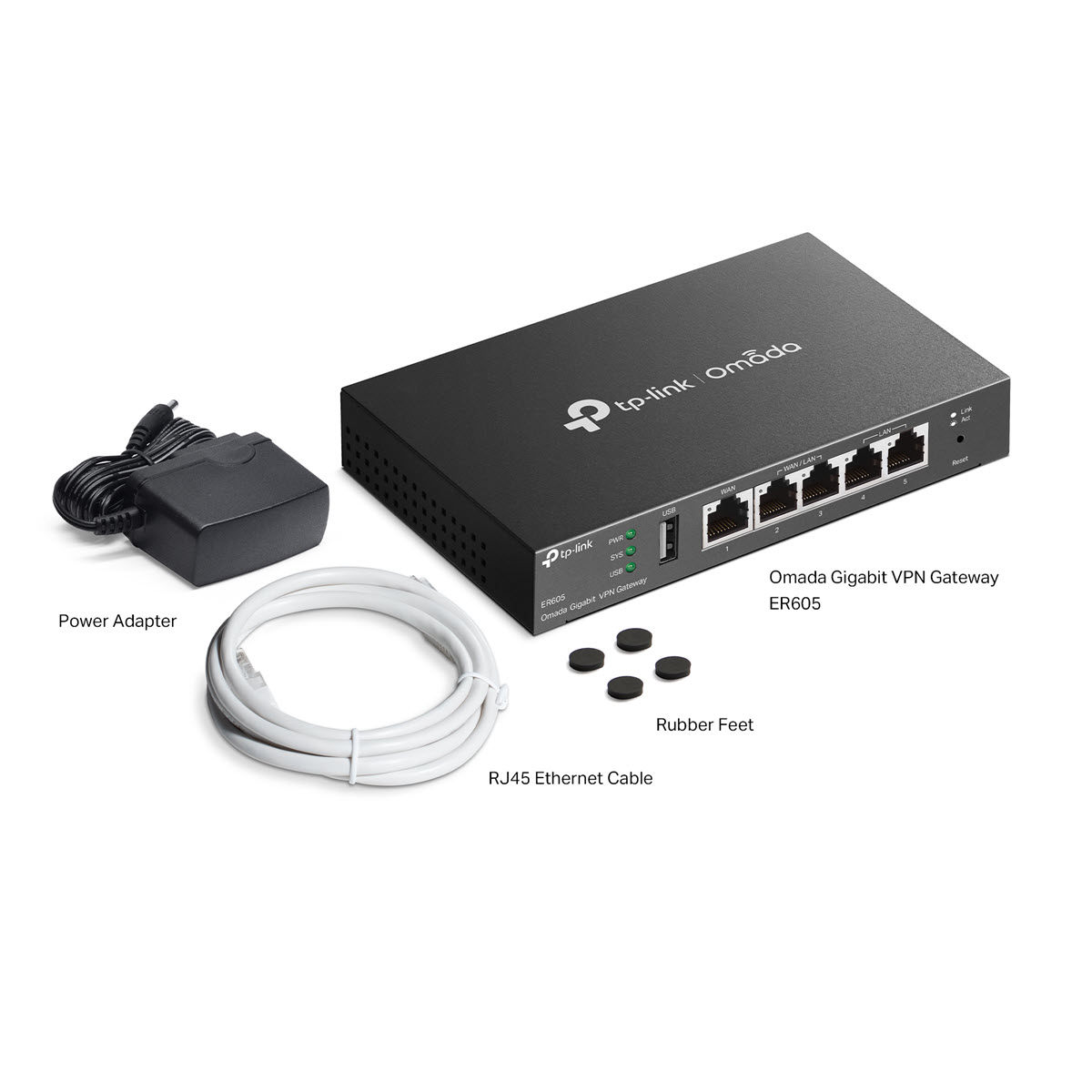

	Pakketinhoud	ER605 Power adapter RJ-45 Ethernet cable Quick installation guide
	Systeemvereisten	Windows 98SE → 11, MacOS, NetWare, UNIX, Linux
	Omgeving	Operating: 0 – 40 ? Storage: -40 – 70 ? Operating humidity: 10 – 90% Storage humidity: 5 – 90%
