| Standaarden en protocollen |
— |
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3x
- IEEE 802.1d
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1q
- IEEE 802.1p
- IEEE 802.1x
|
| |

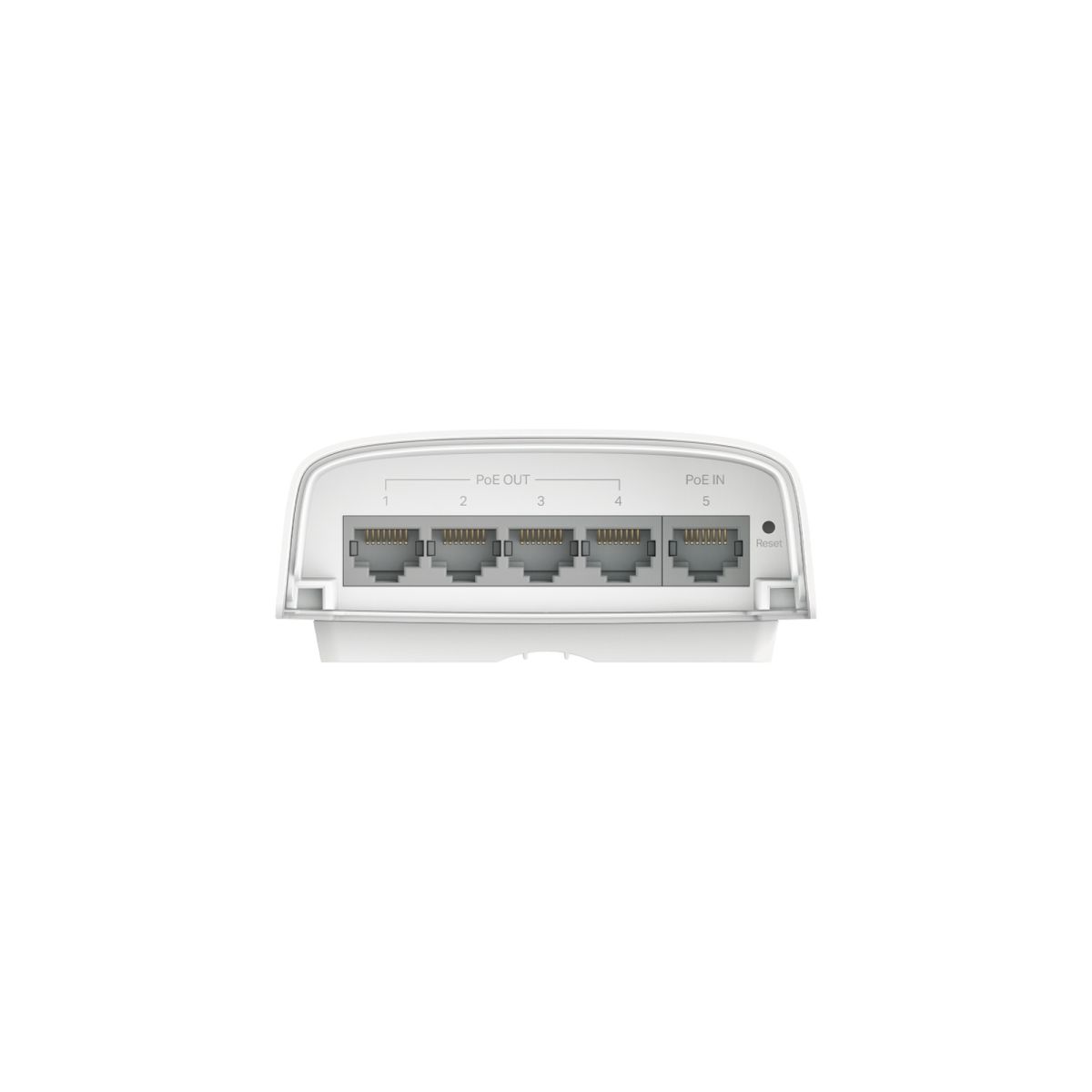

Interface |
- 1× 10/100/1000 Mbps RJ45 PoE In (compliance met 802.3af/at/bt)
- 4× 10/100/1000 Mbps RJ45 PoE Out (compliance met 802.3af/at)
|
| |
Netwerkmedia |
- 10BASE-T: UTP categorie 3,4,5 (max. 100 m)
- 100BASE-TX/1000Base-T: UTP categorie 5,5e of hoger (max. 100 m)
|
| |
Ventilator Aantal |
Fanless |
| |
Uitgangsvermogen |
Obtain power from 802.3af/at/bt PoE source |
| |
PoE-Ports (RJ45) |
- PoE In Port: Poort 5, compliance met 802.3af/at/bt
- PoE Out Poorten: Poorten 1-4, compliance met 802.3af/at PoE
- PoE Power Budget: • 64 W bij voeding met 802.3bt Type 4 (90 W) • 44 W bij voeding met 802.3bt Type 3 (60 W) • 19 W bij voeding met 802.3at • 6 W bij voeding met 802.3af
|
| |
Afmetingen (B × D × H) |
100 × 38.5 × 170 mm (3.9 × 1.5 × 6.7 in) |
| |
Max. Power Consumption |
71.5 W (wanneer gevoed door 802.3bt Type 4 (90 W)) |
| |
Max. Heat Dissipation |
243.99 BTU/hr (wanneer gevoed door 802.3bt Type 4 (90 W)) |
| |
Prestatie – Schakelvermogen |
10 Gbps |
| |
Packet Forwarding Tarief |
7.44 Mpps |
| |
MAC Address Table |
8 k |
| |
Packet Buffer Geheugen |
4.1 Mbit |
| |
Jumbo Frame |
9 KB |
| |
Kwaliteit van de Dienst (QoS) |
- 802.1p CoS/DSCP prioriteit
- 8 prioriteitsqueues
- Priority Schedule Mode: SP (Strict Priority) / WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control – Port/Flow-based Rating Limit
- Smoother Performance
- Storm Control – multiple control modes (kbps/ratio) – Broadcast/Multicast/Unknown-Unicast Control
|
| |
L2 en L2+ Kenmerken |
- 32 IP Interfaces – Support IPv4/IPv6 Interface
- Static Routing – 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay – DHCP Interface Relay / DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Link Aggregation – Static link aggregation / 802.3ad LACP – tot 8 aggregatiegroepen en tot 8 poorten per groep
- Spanning Tree Protocol – 802.1D STP / 802.1w RSTP / 802.1s MSTP – STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- Loopback Detection
- Flow Control – 802.3x Flow Control
- Mirroring – Port Mirroring / CPU Mirroring – One-to-One / Many-to-One / Flow-Based – Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/LLDP-MED
|
| |
L2 Multicast |
- 511 IPv4, IPv6 gedeelde multicastgroepen
- IGMP Snooping – v1/v2/v3 Snooping – Fast Leave – IGMP Snooping Querier – Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping – v1/v2 Snooping – Fast Leave – MLD Snooping Querier – Static Group Config
- Limited IP Multicast (256 profielen en 16 invoergegevens per profiel)
|
| |
Geavanceerde Functies |
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
|
| |
VLAN |
- VLAN Group – Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN
- GVRP
- Voice VLAN
|
| |
Toegangsbeheer (ACL) |
- Support up to 230 entries
- Time-Range – Time Slice / Week Time-Range / Absolute Time-Range / Holiday
- Time-based ACL
- MAC ACL – Source MAC / Destination MAC / VLAN ID / User Priority / Ether Type
- IP ACL – Source IP / Destination IP / IP Protocol / TCP Flag / TCP/UDP Source Port / TCP/UDP Destination Port / DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation – Permit/Deny
- Policy Action – Mirror / Rate Limit / Redirect / QoS Remark
- ACL Rules Binding – Port Binding / VLAN Binding
- Actions for flows – Mirror (to supported interface) / Redirect (to supported interface) / Rate Limit / QoS Remark
|
| |
Veiligheid |
- AAA
- 802.1X – Port-based authentication / MAC (Host) based authentication – Authentication Method includes PAP/EAP-MD5 / MAB – Guest VLAN – Support Radius authentication and accountability
- IP/IPv6-MAC Binding – 512 Binding Entries
- DHCP Snooping / DHCPv6 Snooping / ARP Inspection / ND Detection
- IP Source Guard – 253 Entries – Source IP+Source MAC
- IPv6 Source Guard – 183 Entries – Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security – Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode
- Port Isolation
- Secure web management via HTTPS with SSLv3/TLS 1.2
- Secure CLI management with SSHv1/SSHv2
- IP/Port/MAC-based access control
|
| |
IPv6 |
- IPv6 Dual stack (IPv4/IPv6)
- Multicast Listener Discovery (MLD) Snooping
- IPv6 Neighbor Discovery (ND)
- Path MTU Discovery
- ICMPv6
- TCPv6/UDPv6
- IPv6 applications – DHCPv6 Client / Ping6 / Tracert6 / Telnet (v6) / IPv6 SNMP / IPv6 SSH / IPv6 SSL / Http/Https / IPv6 TFTP
|
| |
MIBs |
- MIB II (RFC 1213)
- Bridge MIB (RFC 1493)
- P/Q-Bridge MIB (RFC 2674)
- Radius Accounting Client MIB (RFC 2620)
- Radius Authentication Client MIB (RFC 2618)
- Remote Ping, Traceroute MIB (RFC 2925)
- Support TP-Link private MIBs
- RMON MIB (RFC 1757, rmon 1,2,3,9)
|
| |
Beheer |
- Omada App – via Omada Cloud-Based Controller / Omada Hardware Controller / Omada Software Controller
- Centralized Management – Omada Cloud-Based Controller / Omada Hardware Controller / Omada Software Controller
- Cloud Access – Yes, via Omada Cloud-Based Controller / Omada Hardware Controller / Omada Software Controller
- Zero-Touch Provisioning – Yes (vereist Omada Cloud-Based Controller)
- Management Features – Web-based GUI / CLI (telnet) / SNMP v1/v2c/v3 / SNMP Trap/Inform / RMON (1,2,3,9) / SDM Template / DHCP/BOOTP Client / Dual Image, Dual Configuration / CPU Monitoring / Cable Diagnostics / EEE / SNTP / System Log
|
| |
Overige |
- Certificatie – CE, FCC, RoHS

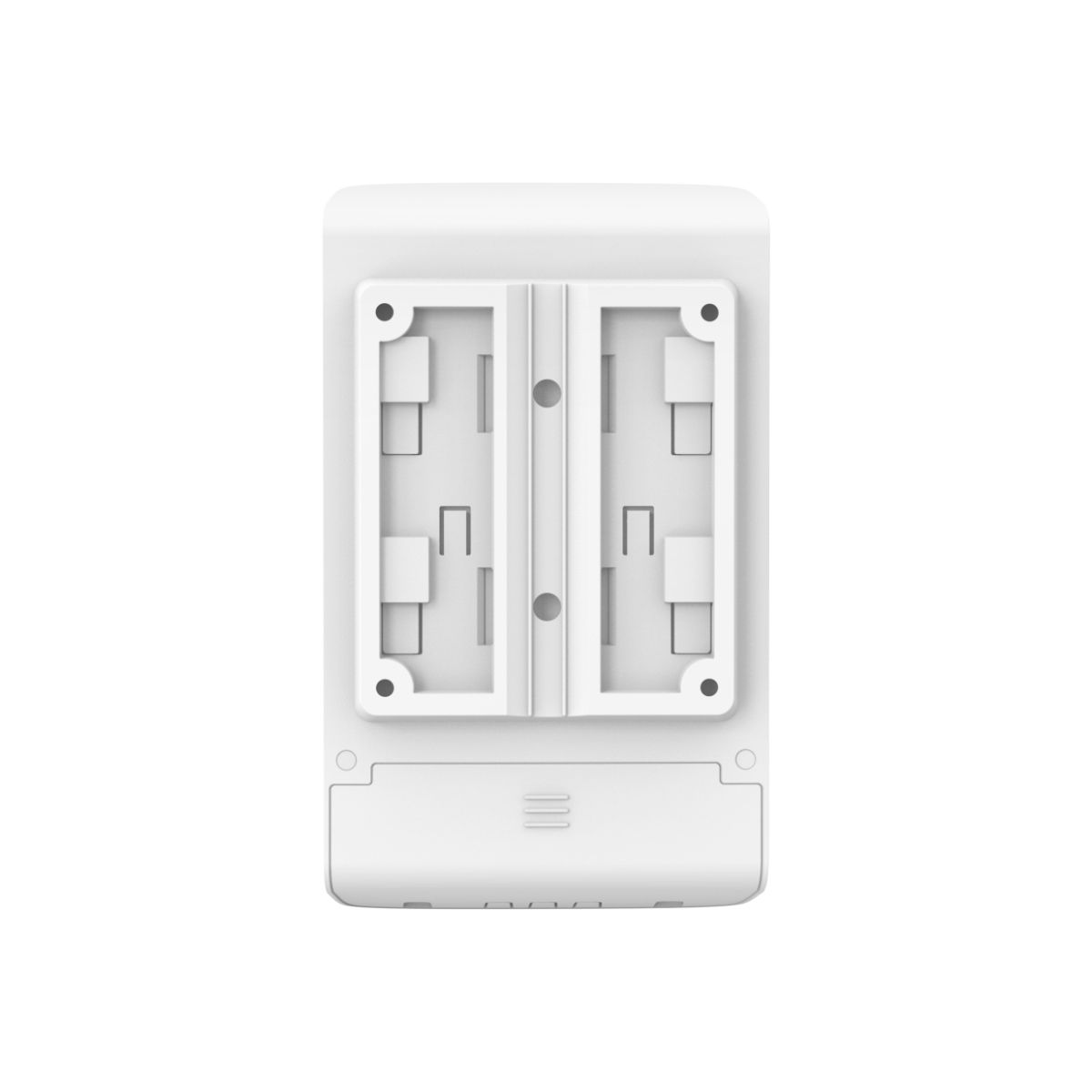

- Pakketinhoud – SG2005P-PD, Mounting Kits, Installation Guide
- Systeemvereisten – Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11, Mac OS, NetWare, UNIX or Linux
- Omgeving – Operating Temperature: -40 °C to 60 °C; Storage Temperature: -40 °C to 70 °C; Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
|
