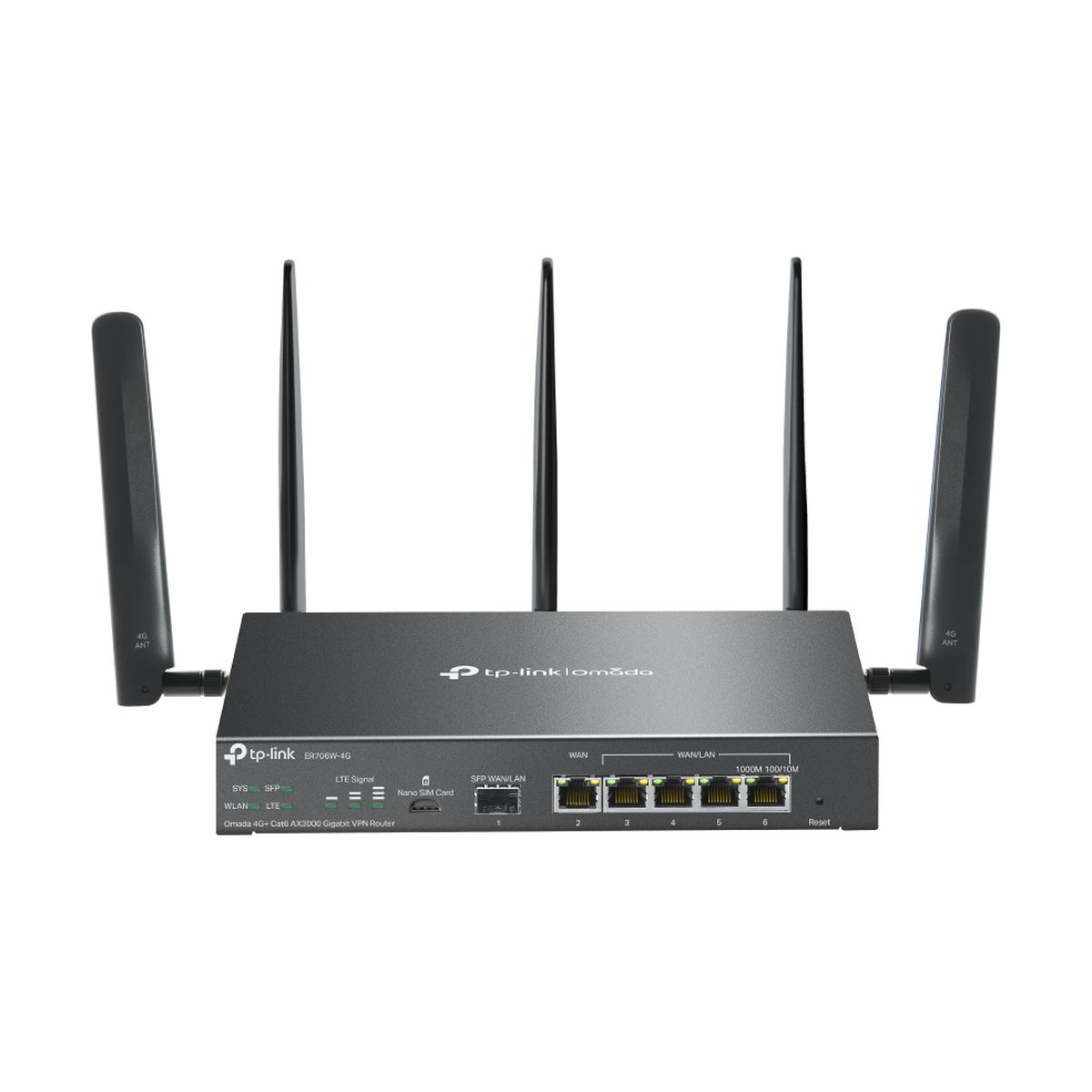

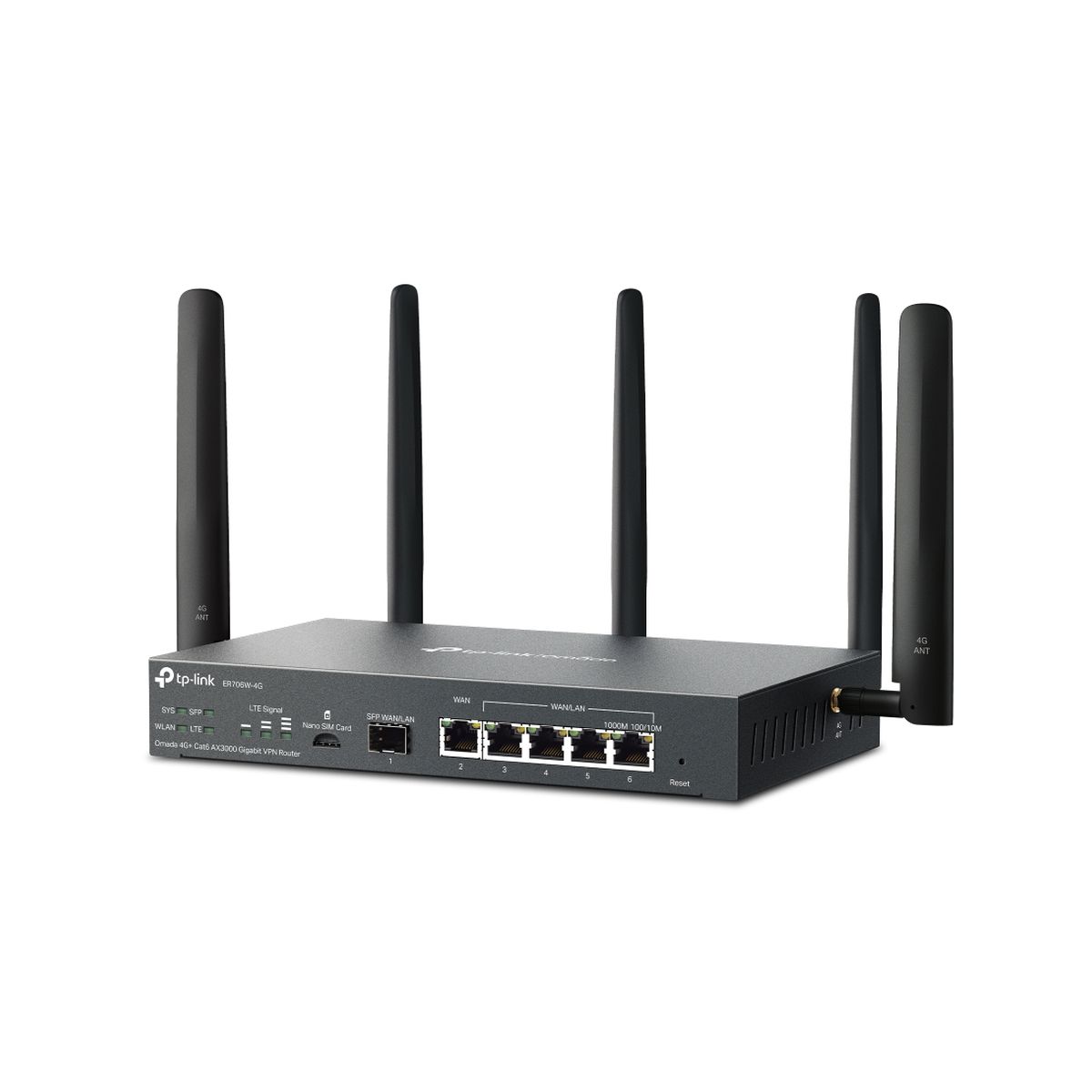

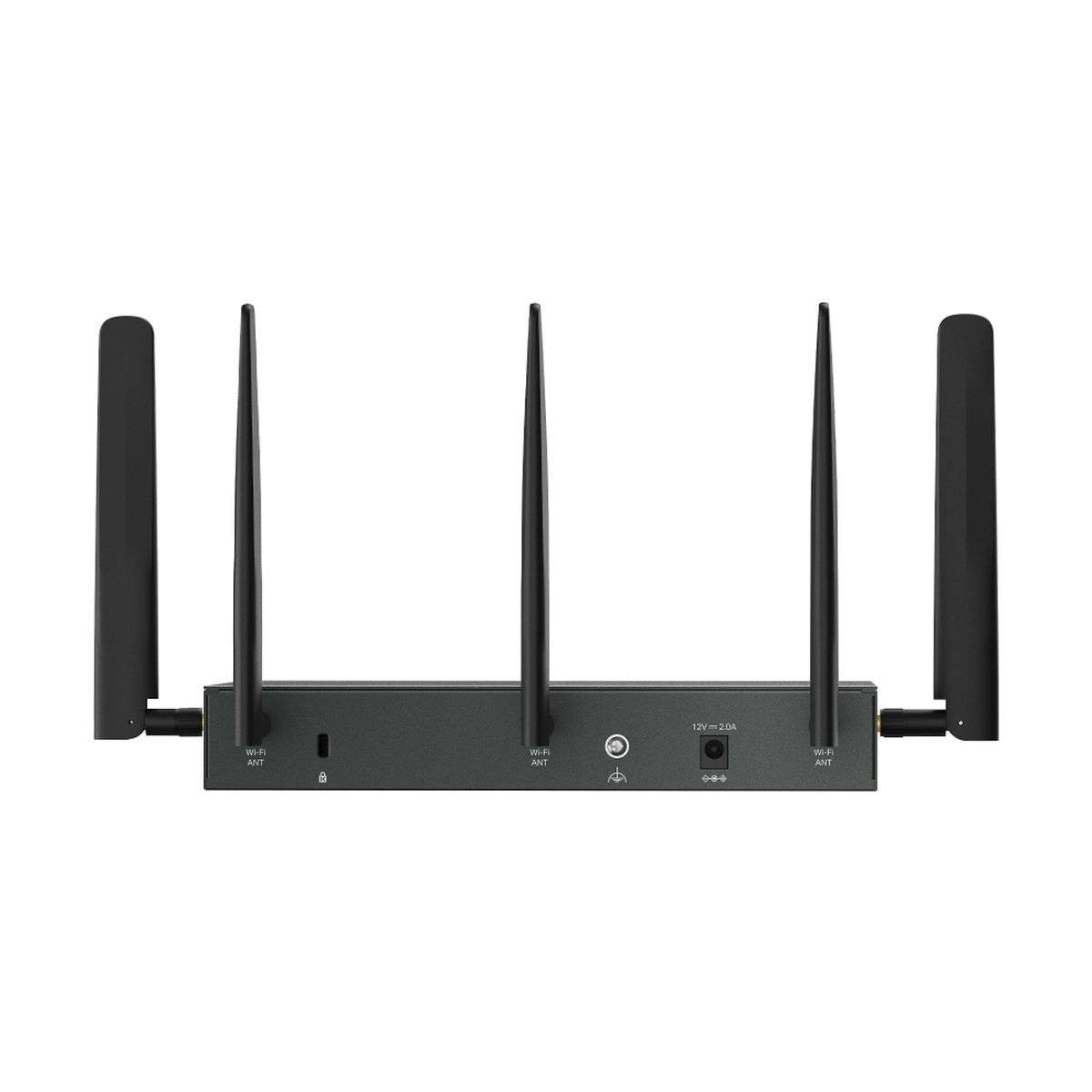

Compacte Omada-gateway/router met 4G LTE (EU/US bandondersteuning met carrier aggregation), dual-band Wi-Fi 6 (HE160), Gigabit WAN/LAN + SFP, geavanceerde security (DPI, IDS/IPS) en uitgebreide VPN-prestaties. Ontworpen voor centraal beheer binnen Omada SDN en inzetbaar als desktop of wall-mount.

Raadpleeg voor alle details de Datasheet onder Documenten/Folders in de Download-tab.

Mobiel (EU)	LTE/3G banden	4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)
	Carrier Aggregation (EU)	B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41
Mobiel (US)	LTE banden	4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) 4G LTE-TDD: B41/B48 (2500/3600 MHz)
	Carrier Aggregation (US)	B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71
SIM	Type	1× Nano SIM Card
Mobiele snelheid	LTE	Downlink: 300 Mbps Uplink: 50 Mbps
Beveiliging (Network)	DPI/IDS/IPS	DPI: Application control via DPI / Updated app library IDS/IPS: Signature-based IPS/IDS threat detection
	Access Control & Filtering	Source/Destination IP Based Access Control Web Group Filtering† URL Filtering Web Security†
	ARP inspectie	Sending GARP Packets ARP Scanning† IP-MAC Binding
	Aanvalbescherming	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Hardware	Interfaces	1× Gigabit SFP WAN/LAN Port 1× Gigabit WAN Port 4× Gigabit LAN/WAN Ports
	Netwerkmedia	10BASE-T: UTP cat 3/4/5 (max 100 m), EIA/TIA-568 100 Ω STP (max 100 m) 100BASE-TX: UTP cat 5/5e (max 100 m), EIA/TIA-568 100 Ω STP (max 100 m) 1000BASE-T: UTP cat 5/5e/6 (max 100 m)
	Knop	Reset Button
	Voeding	12 VDC / 2 A Power Adapter
	LED	SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
	Max. verbruik	EU: 15.4 W US: 17.3 W
	Afmetingen (B×D×H)	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (antenne-afmetingen niet inbegrepen)
	Montage	Desktop/Wall-Mounting
	Flash / DRAM	128 MB NAND / 512 MB DDR4
	Antennes	Wi-Fi: Three 5 GHz 5.5 dBi & 2.4 GHz 4.5 dBi dual-band detachable antennas LTE: Two 4.0 dBi omnidirectional detachable antennas
Wi-Fi	Frequentie & snelheid	2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160)
	Geavanceerde functies	Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit (SSID/Client) Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal/Enterprise Multiple SSIDs: 16 totaal (8 per radio) Gastnetwerk: Support
Basisfuncties	WAN-types	Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP
	DHCP	DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP
	Overig	MAC Clone: Modify WAN Address Stateful ACL / QoS / Bridge VLAN SMS: Receive/Send mDNS Repeater IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN: 802.1Q VLAN IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features	Access Control & Routing	IP/Port/Protocol/Domain Name Filtering Static Routing Policy Routing RIP† OSPF†
	Bandwidth & Load Balancing	IP-Based Bandwidth Control Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection
	NAT	One-to-One NAT Multi-Net NAT Virtual Server Port Triggering† NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
	Session Limit	IP-Based Session Limit
VPN	GRE / SD-WAN / SSL	GRE (Only in Standalone Mode) SD-WAN (Only in Controller Mode) SSL VPN: 50 tunnels
	IPsec VPN	100 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main/Aggressive DES/3DES/AES128/AES192/AES256 IPsec Failover, IKE v1/v2 MD5/SHA1/SHA2-384/SHA2-512 NAT-T, DPD, PFS
	PPTP / L2TP / OpenVPN / WireGuard	PPTP Server & Client (10)?, 50 tunnels, MPPE L2TP Server & Client (10)?, 50 tunnels, L2TP over IPsec OpenVPN Server & Client (5)?, 55 tunnels, "Certificate + Account" Mode, Full Mode WireGuard VPN: 20 tunnels
Prestaties	IPS / DPI throughput	IPS Throughput: TCP 229 Mbps / UDP 188 Mbps DPI Throughput: TCP 933 Mbps / UDP 927 Mbps
	GRE / WireGuard	GRE: Unencrypted 545.3 Mbps / Encrypted 282.6 Mbps WireGuard VPN: 387.7 Mbps
	Sessions	Concurrent Session: 150,000 New Sessions / Second: 5,100
	NAT throughput	Static IP: 947.1/940.1 Mbps DHCP: 949.2/941.1 Mbps PPPoE: 942.6/941.1 Mbps L2TP: 875.4/892.0 Mbps PPTP: 881.2/895.8 Mbps
	Overig performance	IPsec VPN Throughput: ESP-SHA1-AES256 652.2 Mbps; ESP-SHA256-AES256 654.4 Mbps; ESP-SHA384-AES256 646.5 Mbps; ESP-SHA512-AES256 670.5 Mbps OpenVPN: 115.5 Mbps L2TP: Unencrypted 990.0 Mbps / Encrypted 475.0 Mbps PPTP: Unencrypted 1177.9 Mbps / Encrypted 177.4 Mbps SSL VPN Throughput: 122.5 Mbps 66 Byte Pkt Fwd Rate: 1,453,489 / 1,453,488 pps 1,518 Byte Pkt Fwd Rate: 81,274 / 91,275 pps
Beheer	Platform	Omada App Omada Cloud-Based Controller Omada Hardware Controller (OC300/OC200/OC220) Omada Software Controller
	Cloud/Zero-Touch	Cloud Access & Zero-Touch Provisioning (via Omada Cloud-Based Controller)
	Services & onderhoud	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Web Management Interface, Remote Management Export/Import Config, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute)†, NTP Synchronize†, Port Mirroring, CLI (Standalone), Syslog
	Management features	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration
Overige	Default services	Web Server — HTTP/HTTPS (poorten 80/443, TCP) TDP Server — UDP 20003 DHCP Server — UDP 67 DNS — TCP/UDP 53
	Certificatie	CE, FCC, RoHS
	Pakketinhoud	• ER706W-4G • Power Adapter • Quick Installation Guide
	Systeemvereisten	Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11; MAC OS; NetWare; UNIX; Linux
	Omgeving	Operating Temperature: 0–40 °C (32–104 °F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
