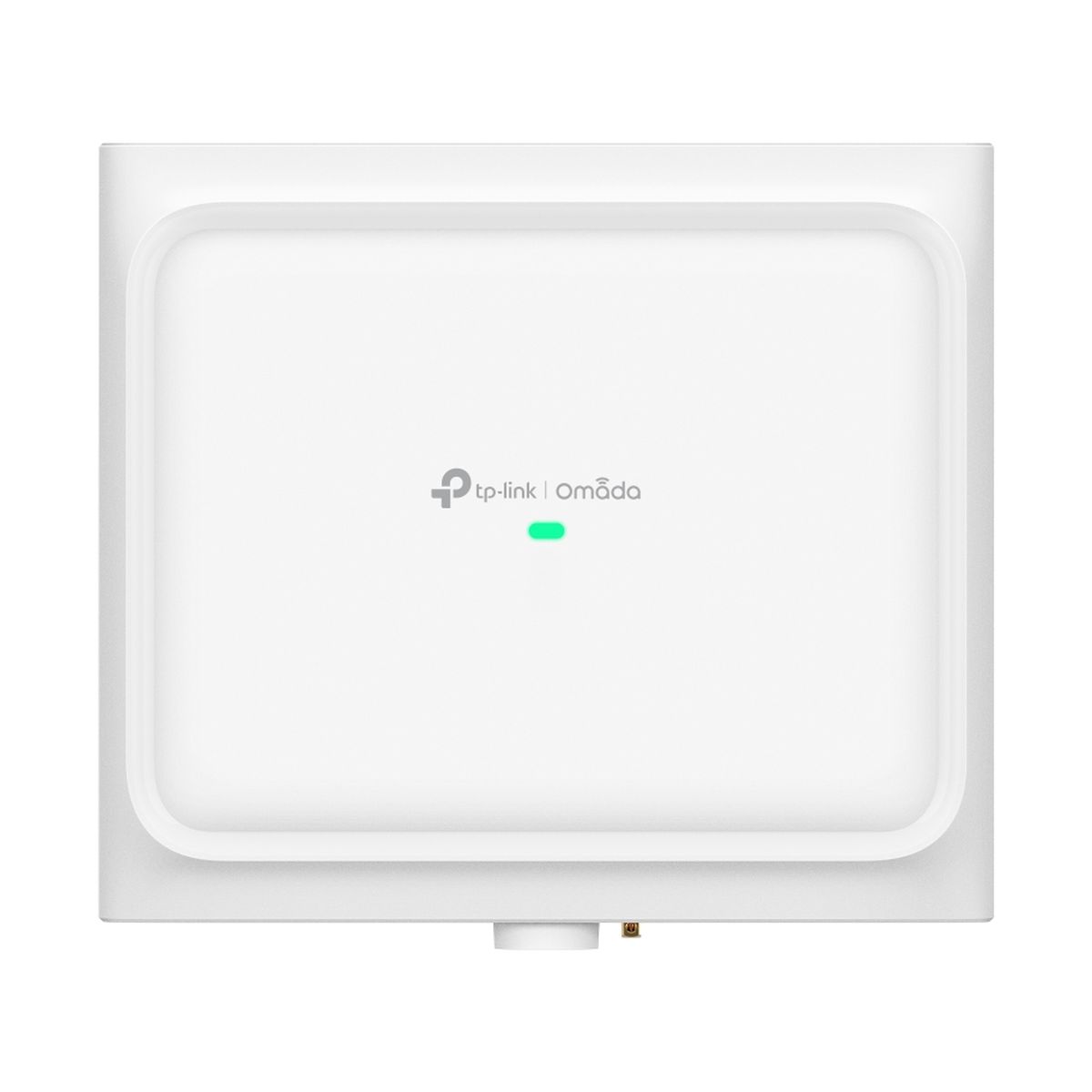

EAP772-Outdoor is een tri-band Wi-Fi 7 access point voor buitengebruik met 2.5G-PoE-aansluiting, IP68-behuizing en geïntegreerde GNSS. Met 2×2-stream radio’s op 2.4/5/6 GHz, MLO en 320 MHz-kanaalbreedte levert het hoge doorvoersnelheden en stabiele dekking. Beheer verloopt centraal via Omada SDN (cloud, hardware of softwarecontroller) met functies als Mesh, Seamless Roaming en uitgebreide beveiliging.

Raadpleeg voor alle details de Datasheet onder Documenten/Folders in de Download-tab.

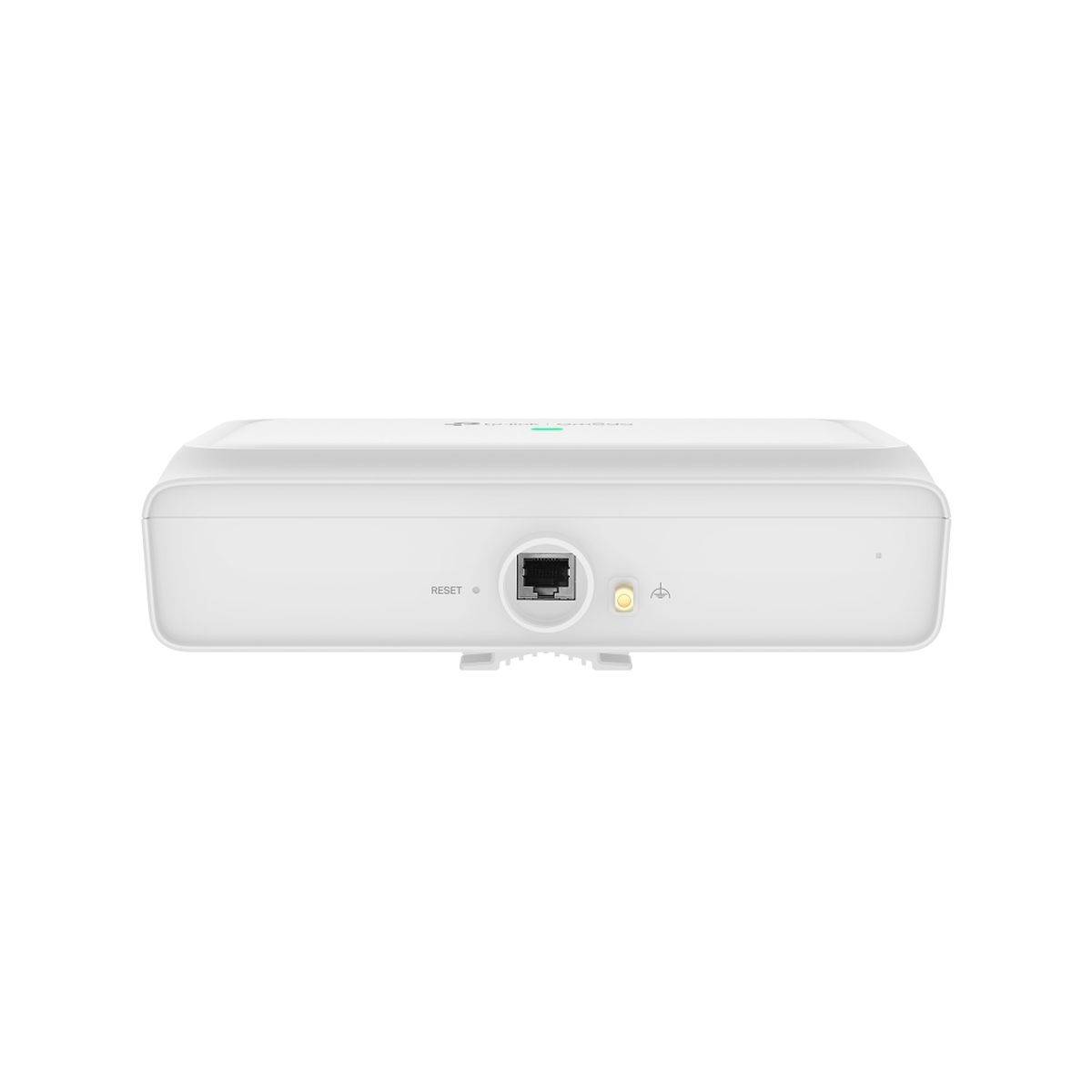

Hardware	Interface	1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
	Knop	Reset
	Voeding	802.3at PoE
	Energieverbruik	EU: 21.5 W (for PoE) US: 23 W (for PoE)
	Afmetingen (B × D × H)	9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
	Antenne	2.4 GHz: 2× 4 dBi 5 GHz: 2× 6 dBi 6 GHz: 2× 6 dBi
	GNSS	L1 (1575.42 MHz) receiver; GPS, Galileo, GLONASS, BeiDou; Receive sensitivity: −164 dBm (tracking); geïntegreerde 3 dBi omnidirectionele GPS-antennes
	Bluetooth	BLE 5.2
	Behuizing	IP68 weatherproof enclosure

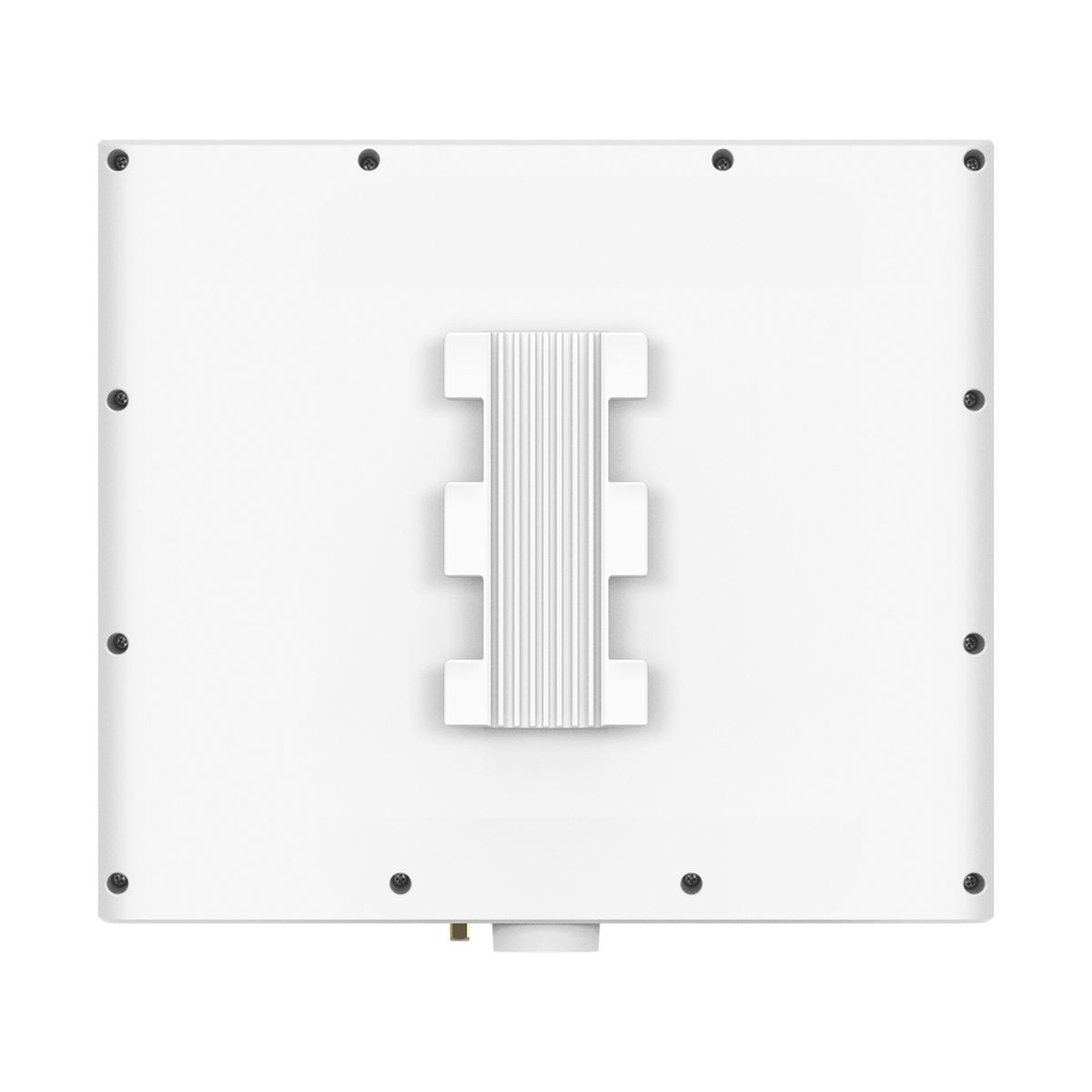

	Montage	Pole/Wall Mounting (kits included)
Draadloos	Coverage	300 m2 (3,200 ft2) Recommended Omnidirectional Coverage
	Concurrent Clients	250+6
	Wi-Fi standaarden	IEEE 802.11be/ax/ac/n/g/b/a
	Frequentiebanden	2.4 GHz, 5 GHz, 6 GHz
	Signaalsnelheid	802.11be: 8.6 Mbps to 5765 Mbps (MCS0–MCS13, NSS = 1 to 2, HE20/40/80/160/240/320) 802.11ax: 8.6 Mbps to 2402 Mbps (MCS0–MCS11, NSS = 1 to 2, HE20/40/80/160) 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0–MCS9, NSS = 1 to 2, VHT20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT20/40) 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11b: 1/2/5.5/11 Mbps 802.11a: 6/9/12/18/24/36/48/54 Mbps
	Draadloze functies	1024-QAM Multiple SSIDs (max. 16, 8 per band) OFDMA MU-MIMO MLO 320 MHz Omada Mesh3 Seamless Roaming (802.11k/v/r)3 Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics (SSID/AP/Client) Static IP/Dynamic IP
	Draadloze beveiliging	Captive Portal Authentication3 Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
	TX-vermogen (EIRP)	CE: <20 dBm (2.4 GHz), <28 dBm (5 GHz band 3) FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz), <25 dBm (6 GHz)
Beheer	Omada App	Yes
	Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
	Cloud Access	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
	Overig beheer	Email Notifications Management MAC Access Control SNMP v1, v2c Local/Remote Syslog SSH Web-based Management L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning (via Omada Cloud-Based Controller)
Certificering & verpakking	Certificatie	CE, FCC, RoHS
	Pakketinhoud	• Access Point EAP772-Outdoor • Power Cord • Mounting Kits • Installation Guide
Systeem	Systeemvereisten	Microsoft Windows XP/Vista/7/8/10/11, Linux
Omgeving	Temperatuur	Operating Temperature: −30–70 °C (−22–158 °F) Storage Temperature: −40–70 °C (−40–158 °F)
	Vochtigheid	Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

Tri-band Wi-Fi 7 (2.4/5/6 GHz) met MLO en 320 MHz kanaalbreedte
2.5G RJ45-poort met 802.3at PoE-ondersteuning
IP68-weerbestendige behuizing voor buiteninstallaties
Geïntegreerde GNSS-ontvanger (GPS/Galileo/GLONASS/BeiDou) voor positionering
Hoge antennewinst: 2.4 GHz 2×4 dBi, 5 GHz 2×6 dBi, 6 GHz 2×6 dBi
Omada SDN-integratie: Cloud/Hardware/Software Controller en Omada App
Geavanceerde radiofuncties: OFDMA, MU-MIMO, Beamforming, Band Steering
Uitgebreide security: WPA3, 802.1X, Captive Portal, Rogue AP-detectie
