Deze camera zal 2 kanalen in beslag nemen

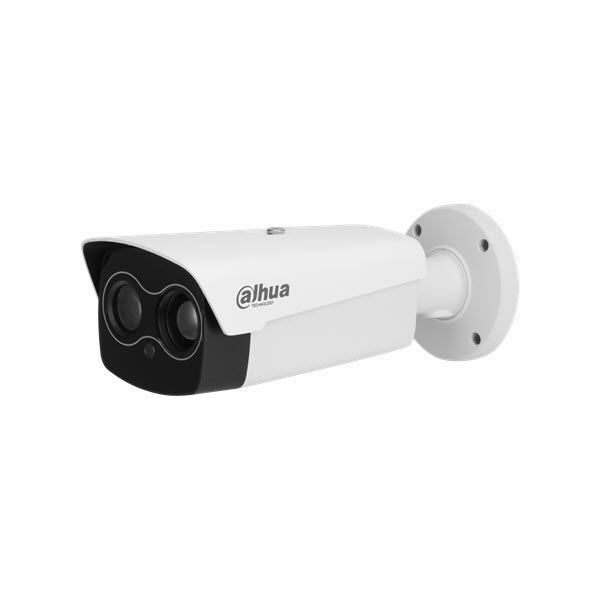

This hybrid camera consists of a day/night camera and a thermal camera. A thermal camera's image is based on temperature variations. Therefore, a thermal camera generally sees more than a standard optical camera. Unlike a regular camera, a thermal camera is not affected by unusual lighting conditions such as backlight, low light, or IR reflection. This makes the camera ideal for various detection methods.

Raadpleeg voor alle details de Datasheet onder Documenten/Folders in de Download-tab.

Camera	Aantal beeldsensoren:	2
	Optisch/Thermisch:	Optisch
	Beeldsensor:	1/1.8" CMOS
	Resolutie:	2688 x 1520
	Aantal pixels:	4MP
	Minimale verlichting sterkte (in kleur):	0.01 Lux
	Minimale verlichting sterkte (LED aan (zwart/wit)):	0 Lux
	Verlichting:	Witte LED
	LED afstand:	80m
	Aantal LED(s):	1 LED
	Sluitersnelheid:	1/1 ~ 1/30,000s
	Ruisonderdrukking:	3DNR
	Video Uitgang:	Ja
	Video Uitgang Opmerking:	1x CVBS
	Beeldsensor2:	Vanadium oxide uncooled focal plane detector
	Optisch/Thermisch2:	Thermisch
	Aantal Pixels2:	400 x 300
	Gevoeligheid2:	≤35 mK (@f/1.0)
Lens	Lens type:	Vaste lens
	Iris:	Vaste Iris
	Brandpuntsafstand:	4mm
	Maximale opening:	F1.6
	Horizontale openingshoek:	87°
	Verticale openingshoek:	47.3°
	Brandpuntsafstand2:	7.5mm
	Maximale opening2:	F1.0
	Horizontale openingshoek2:	53.5°
	Verticale openingshoek2:	39.5°
Video	Stream mogelijkheid:	2 streams
	Video compressie:	H.264, H.264 B, H.264 H, H.264 M, H.265, MJPEG
	Beelden per seconde (Hoofdstream):	Optisch: 25fps @2688 × 1520 Thermisch: 25fps @1280 × 1024
	2de stream:	Optisch: 25fps @704 x 576 Thermisch: 25fps @640 x 480
	Dag/Nacht:	Auto (filter), Kleur, Zwart/Wit
	Lichtcompensatie:	BLC, DWDR, HLC
	Bewegingsdetectie:	Aan/Uit

	Slimme Functies:	AI Perimeter Protection
		Cold/Hot spot tracking
		Intrusion Detection
		Trip Wire
	Defog:	Nee
	Privacy-maskering:	Ja
Audio	Ingebouwde microfoon:	Nee
	Audio ingang:	Ja
	Audio Uitgang:	Ja
	Audio Compressie:	AAC, G.711 A, G.711 MU, PCM
	Speaker:	Ja voor Audio alarm
Netwerk	Ethernet:	RJ-45 (10/100Base-T)
	Opslag optie SD-kaart:	Ja
	Maximale Opslag Capaciteit SD-kaart:	512 GB
Interface	RS-485:	Ja
	Alarm:	Ja
	Aantal kanalen in:	2x
	Aantal kanalen uit:	2x
Elektrisch	inclusief voeding:	Nee
	Voeding:	12V DC, PoE (Type IEEE 802.3af), E-PoE
	Max Verbruik:	15W
Omgeving	Werktemperatuur:	-30°C ~ +70°C
	Waterdichtheid:	IP67
Constructie	Materiaal	Metaal
	Hoogte	181.8mm
	Breedte	181.8mm
	Diepte	300.9mm
	Gewicht:	2.35 Kg

DORI 7.5mm Thermal Lens
The DORI makes it easy to determine whether a camera is suitable for the application in question. The DORI is based on lab tests and certified according to EN 62676-4. This certification applies to: Detect, Observe, Recognition, and Identification.
	(R) Recognize	Identify
Person (1.8mx0.5m)	53m	26m
Vehicle (2.3mx2.3m)	155m	78m

Maximum distance for heat detection
During this test, a target size of 0.2m × 0.2m was used and the test was carried out in an environment with a temperature of 23°C and a humidity of less than 60%.
Focal length			Maximum distance
7.5mm			45m

Maximum distance for Perimeter Protection
During this test, the target sizes used were 1.8m x 0.5m (person) and 1.4m x 4m (vehicle). The test was conducted in an environment with a temperature of 23°C and humidity below 60%.
			Maximum distance
Person (1.8mx0.5m)			60m
Vehicle (2.3mx2.3m)			180m
Please note: The actual distances shown in the specifications are for guidance only. The exact distances depend on many circumstances and conditions.
